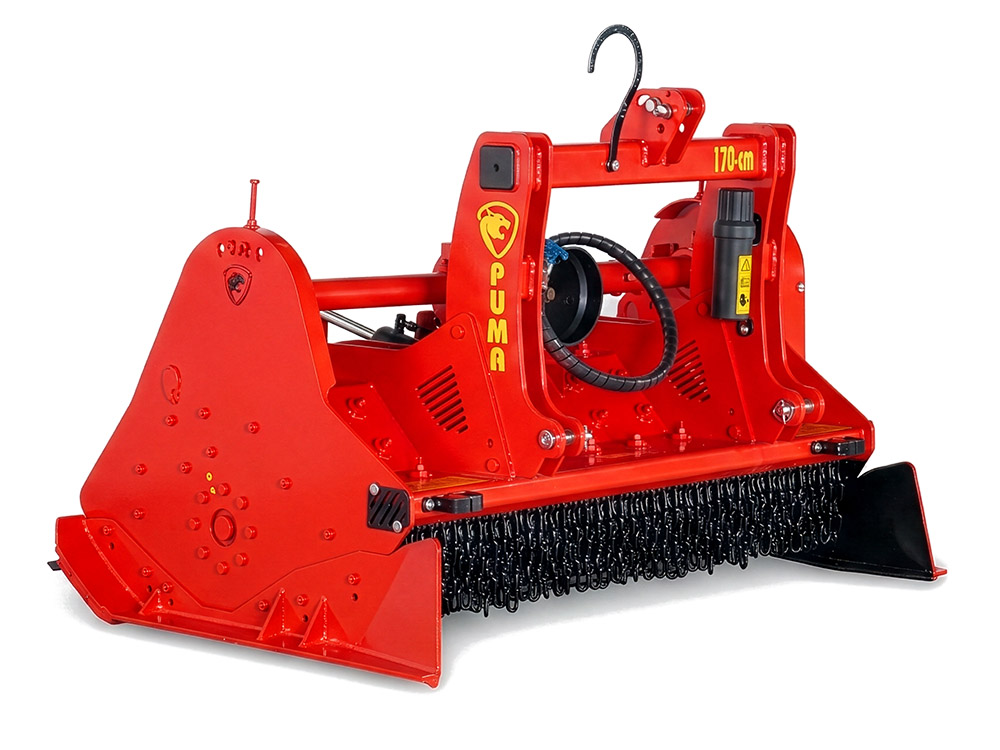

PUMA 170
The Puma Stone Crusher is designed to break stones on the field surface and up to 30 cm in depth using specially crafted carbide diamond blades. The crushing process takes place between 50 carbide diamond blades and Hardox plates. The machine's interior is equipped with replaceable, wear-resistant Hardox plates.
The Puma Stone Crusher is ideal for use in rocky fields, orchards, greenhouses, and any land that can be made suitable for agriculture. By breaking the stones on the land surface, the soil becomes arable, and the minerals from the stones mix into the soil. This results in an increase in agricultural yields and a decrease in the need for chemical fertilizers.



They allow the machine to work efficiently in tough soils without strain and protect the machine from blockages.


WIDTH - A1: 2000 mm WORKING WIDTH - A2: 1700 mm WEIGHT: 1730 kg |
LENGTH - B: 1250 mm HEIGHT - C: 1250 mm SOIL WORKING DEPTH: 200 mm WORKING SPEED: 0.3-2 km/h NUMBER OF CRUSHER BLADES: 34 |
CRUSHER BLADE MATERIAL: Boron Carbide MACHINE INTERNAL COATING: Hardox CRUSHER BLADE POSITION: Helical PTO SPEED (POWER TAKE-OFF RPM): 540 rpm MACHINE REAR DOOR: Hydraulic |
OIL PUMP POWER SOURCE: Tractor POWER REQUIREMENT: 80 HP REQUIRED TRACTOR FEATURE: Super Creeper Gear |
