The Kaplan Stone Picker Machine enables the collection of stones found on the land surface and at a depth of 35 cm, storing them in its extra-large hopper and unloading them at the desired location. Thanks to its specially designed spring drum and screening system, it efficiently picks up stones ranging from 3 to 45 cm in diameter, while its side collectors maximize soil efficiency without putting excessive strain on the machine or tractor. With its specially developed vibrating screen, it allows operation in moist soils while also preventing stone clogging. The newly designed segmented blades provide easy replacement, allowing worn-out parts to be changed with blades made from the desired material. It is used in stony fields, orchards, greenhouses, and all types of land that can be made suitable for agriculture.

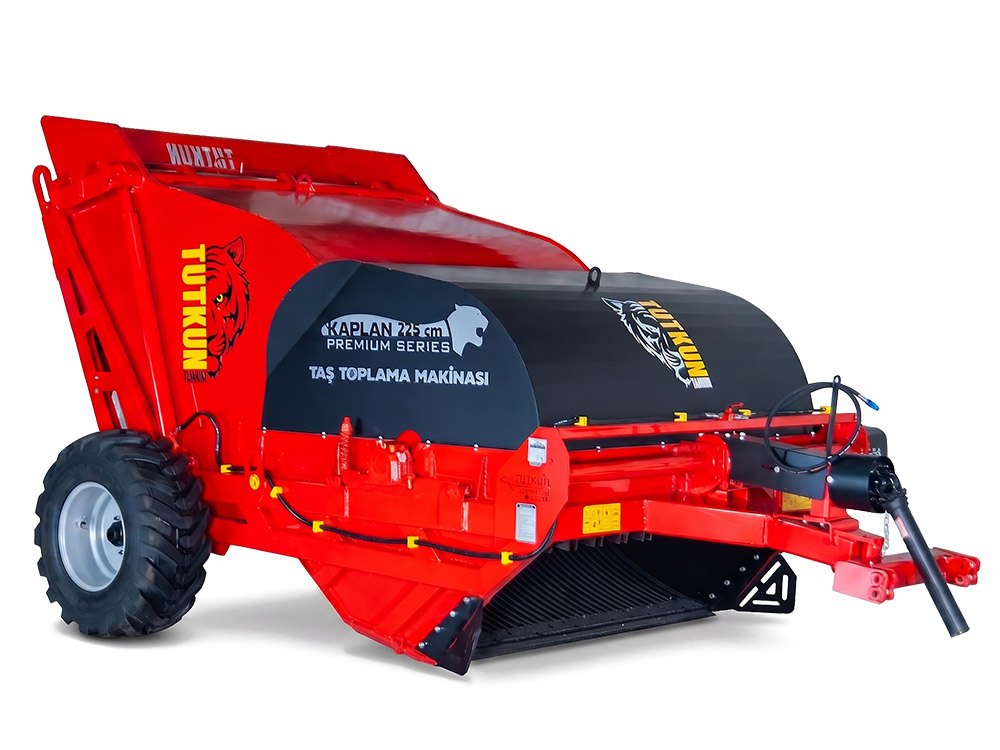

KAPLAN 225 - Field
LENGTH - A1: 5000 mm HEIGHT - C1: 2600 mm WEIGHT: 5000 kg HOPPER CAPACITY (m³): 4 m³ HOPPER CAPACITY: 10 tons |
WIDTH - B1: 3350 mm WORKING WIDTH - B2: 2250 mm CHASSIS WIDTH - B3: 2620 mm WORKING DEPTH: 300 mm MIN/MAX STONE DIAMETER: 30-400 mm |
HOPPER WIDTH: 2140 mm HOPPER UNLOADING HEIGHT: 2200 mm HOPPER UNLOADING ANGLE: 40° NUMBER OF BLADES: 66 DRUM MOVEMENT: PTO (Power Take-Off) |
SAFETY SYSTEM: Braked Shaft TIRE SIZE: 16-70/20 PTO SPEED (POWER TAKE-OFF RPM): 540 rpm DRUM SPEED: 93 rpm MINIMUM REQUIRED POWER: 115 HP |
